ND H100 v5 is Microsoft’s eight-way H100 VM and node. It resembles the NVIDIA DGX H100 reference architecture and uses a similar Intel Sapphire Rapids host platform.

Each VM has1

  • 96 Intel Xeon (Sapphire Rapids) cores (physically two 56-core sockets)
  • 1,900 GiB DDR5
  • 28,000 GiB of local storage (physically 8x NVMe drives)
  • 1x 80G Ethernet NIC (physically 100G Azure SmartNIC)
  • 8x 400G ConnectX-7 NDR InfiniBand HCAs
  • 8x Nvidia H100 GPUs

This is what it looks like from the top:2

Of note,

  • At the far end are the intake fans
  • The HGX baseboard is just behind them with eight tall heatsinks shown. Underneath the far grab bar are the NVLink Switches under equally tall heat sinks.
  • At the near end is the Host Interface Board which connects the CPU board (not visible), the HGX baseboard, and the NICs and SSDs.

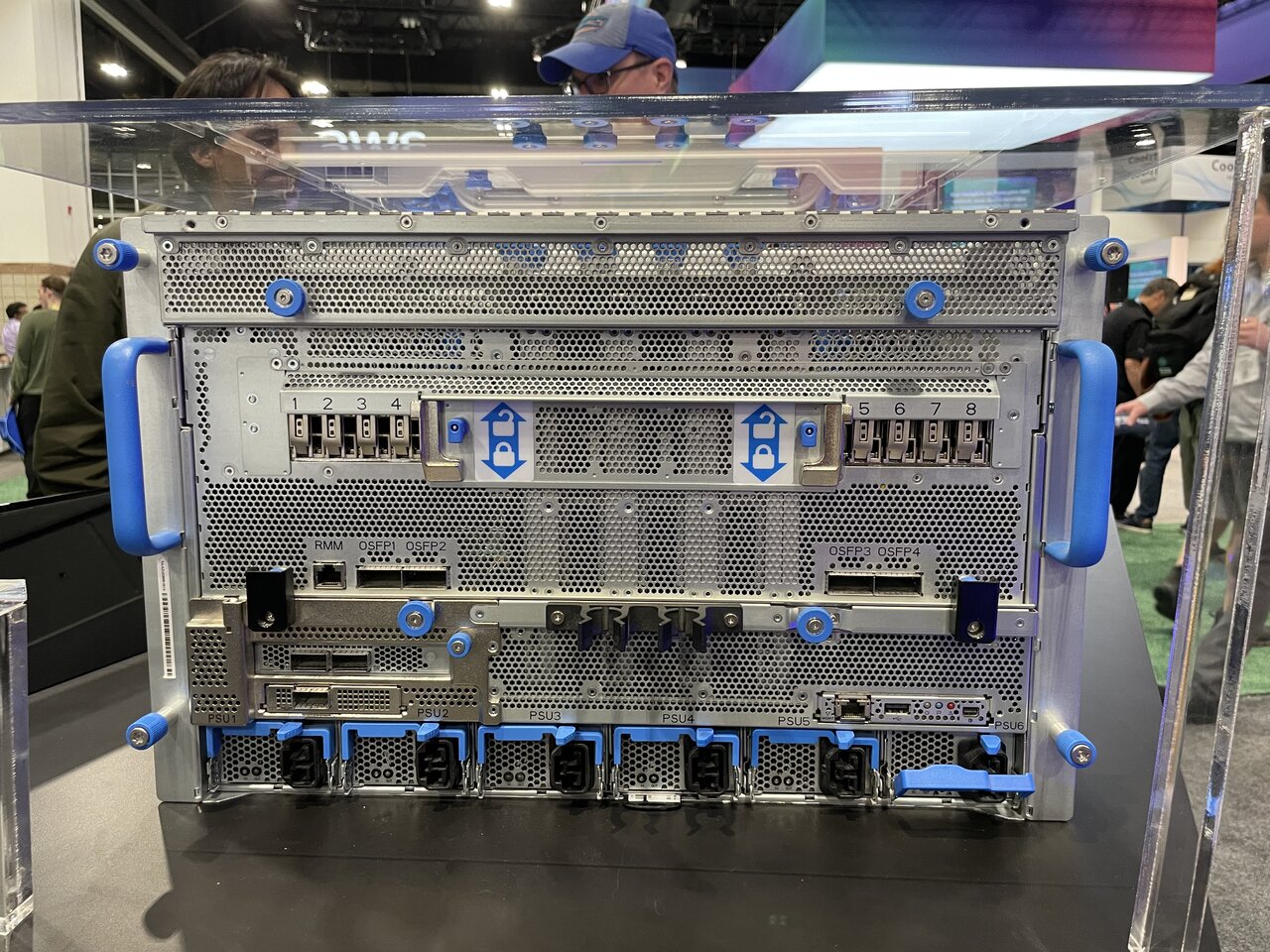

This is the rear end of it:

From top to bottom:

  • Two pairs of 4 E1.S SSD carriers
  • One RJ45 management port and four OSFP ports. Each OSFP port carries two ports of NDR InfiniBand
  • A two-port Azure SmartNIC
  • A one-port Ethernet NIC that works in conjunction with the SmartNIC
  • Six power supplies

These nodes are what comprise the Eagle supercomputer.

Footnotes

  1. ND-H100-v5 size series - Azure Virtual Machines | Microsoft Learn

  2. Took these photos myself at Microsoft’s booth at SC’23.
