Out of box

As of the 2020-04-06 Debian image, the only network interface that works out of the box is the wifi access point (AP).

  1. The USB-C network bridge for appears up on the BeagleBone, but the host (MacOS) sees no link activity
  2. The USB serial (/dev/tty.usbmodem1234BBBK56786 on MacOS) appears, but the tty doesn't appear to be configured on the BeagleBone side - perhaps because BeagleBone AI has a dedicated set of serial output pins that are configured instead?

So get into the BeagleBone AI through the AP then ssh into it:

imac$ ssh 192.168.8.1 -l debian
...
debian@192.168.8.1's password:

Upgrading the boot scripts and rebooting gets the USB network interface up and running, but you can't upgrade without first getting into the BeagleBone AI.

Connecting to wifi

Wifi is configured using connman. To connect to your local wifi network:

debian@beaglebone:~$ sudo connmanctl
[sudo] password for debian:

connmanctl> agent on
Agent registered

connmanctl> services
...

connmanctl> connect wifi_8091334a2a5d_316e31_managed_psk
Agent RequestInput wifi_8091334a2a5d_316e31_managed_psk
  Passphrase = [ Type=psk, Requirement=mandatory ]
  Passphrase?

This will drop the AP connection temporarily, but it should put the BeagleBone on your WiFi network as "beaglebone.local".

imac$ ssh beaglebone.local -l debian

Disable the wifi AP

Disable the AP to prevent your neighbors from being able to root your new BeagleBone. Unlike the BeagleBone Black Wireless, the BeagleBone AI doesn't honor the TETHER_ENABLED variable in /etc/default/bb-wl18xx; in fact, it doesn't look like the AP setup service (/usr/bin/bb-bbai-tether) provides a way to disable tethering. Instead, you have to disable the service outright:

debian@beaglebone:~$ sudo systemctl disable bb-bbai-tether.service

Upgrading

The OS image version you get on your BeagleBone AI depends on how long it's been sitting in a warehouse since manufacture. My AI came with two-year-old firmware.

OS image upgrade

I recommend installing the latest Debian image on the eMMC as early into the process as possible. My BeagleBone AI shipped with BeagleBoard.org Debian Image 2019-08-03 which I suspected was riddled with problems. Here's what I did on MacOS to upgrade:

Step 1: Download the latest image from BeagleBoard.org Latest Firmware Images

imac$ curl -O 'https://debian.beagleboard.org/images/am57xx-debian-10.3-iot-tidl-armhf-2020-04-06-6gb.img.xz'

Step 2: Unzip the image

imac$ xz -d am57xx-debian-10.3-iot-tidl-armhf-2020-04-06-6gb.img.xz

Step 3: Write image to SD card

Plugging the SD card into my iMac resulted it coming up as /dev/disk4 according to Disk Utility. So,

imac$ sudo gdd if=am57xx-debian-10.3-iot-tidl-armhf-2020-04-06-6gb.img of=/dev/disk4 bs=4M status=progress

If you don't have GNU installed from Brew or MacPorts, just use MacOS's dd.

Step 4: Boot off the SD card

Once the SD card is fully written, power off the BeagleBone AI, insert the card, and power back up. BeagleBone AI will boot off the SD card which you can verify by logging in and noting the OS image version on the ssh banner.

Step 5: Set the booter into flash mode

Edit /boot/uEnv.txt and uncomment the last line (cmdline=).

##enable x15: eMMC Flasher:
##make sure, these tools are installed: dosfstools rsync
cmdline=init=/opt/scripts/tools/eMMC/init-eMMC-flasher-v3-no-eeprom.sh

Once you've edited uEnv.txt, reboot again. The BeagleBone will begin the flashing process which you can verify by the USR LEDs cycling in a pretty pattern. Once the flashing has completed, the BeagleBone AI will power itself off. Remove the SD card, power up, and you should boot off the new image written to the eMMC.

Alternative OS images

You may also choose to replace the BeagleBone Debian OS with one of TI's own OS images (Linux, TI-RTOS, or Android) with the AM57x Processor SDK. Those are much more rough experiences than Debian, but if you want to try it, log in using the root user (no password) after booting from your SD image.

Boot script upgrade

Upgrade the boot scripts by pulling from Robert Nelson's repo. This updates a lot of important tools the BeagleBone AI uses to configure the default network interfaces.

$ cd /opt/scripts/tools
$ git pull
$ sudo ./update_kernel.sh
$ sudo reboot

You may have to re-disable the wireless AP

Hardware

The BeagleBone AI features a Texas Instruments Sitara AM5749 system-on-a-chip with

Cortex-A15 processors

The microprocessor unit (MPU) has two Arm Cortex-A15 cores.

Purpose: The MPU is designed to run the host OS.

C66x DSPs

The DSP subsystem has two C66x digital signal processors which can perform both fixed-point and floating-point arithmetic. Each DSP core has two multiply units and six add units which enable up to 12 GFLOP/s for 32-bit floating point. or 48 GFLOP/s for 16-bit floating point. It also has special hardware and instructions for Galois field multiplication to hardware-accelerate parity for error correction, RAID, etc.

Purpose: The DSPs are power-efficient accelerators for signal processing algorithms that rely on dense fixed- and floating-point arithmetic such as parity calculations and fourier transforms.

Usage: BeagleBone AI ships with the TI TMS320C6000 C/C++ code generation tools which include the cl6x C/C++ compiler. TI also provides a bunch of offload libraries for FFTs, transcendental math functions, image processing such as de-noising, and linear algebra. Their accelerated libraries page is pretty comprehensive.

More info: The TMS320C66x DSP CPU and Instruction Set Reference Guide contains a lot more detail about the features of these DSPs, and the C6000-CGT webpage points to documentation on how to use the DSP compiler toolchain.

EVE vector processors

The EVE DLAs each have two processors: a 32-bit general-purpose processor called "ARP32" and a 320-bit vector coprocessor called "VCOP." The ARP32 sounds a lot like the PRU in that it is essentially a single-cycle RISC processor for real-time processing, and its sole role is to manage and drive the VCOP. The VCOP is an exotic architecture that supports 8-way SIMD of 32-bit integer arithmetic using 40-bit registers, supports up to four levels of nested looping in hardware, and has dedicated functional units for vectorized table lookups and histogram calculation.

The EVE processor was designed for real-time applications in automotive machine vision but is (sadly) no longer being developed. Instead, TI's C7000 DSPs superseded its functionality by implementing wider (512-bit) vectors and full floating-point support, but dropping the exotic features like the histogram unit, table lookup unit, and hardware nested loop support. The VCOP Kernel-C to C7000 Migration Tool has a great feature comparison of EVE and C7000 in Section 1.1.

Purpose: The EVE DLAs are meant to accelerate machine vision applications including inference using neural networks. EVE was designed as a low-power accelerator for autonomous vehicles and the like. They are between 1.5x and 4x faster and use more than 2x more power-efficient than the C66x DSPs.

Usage: For the BeagleBone AI, it appears that you are meant to interact with the EVE DLA subsystem entirely through its TI Deep Learning (TIDL) libraries rather than write your own native code against these coprocessors. It looks like the is a C compiler for the ARP32 (cl-arp32), and the VCOP is programmed in a C++ dialect called VCOP Kernel C. Neither compiler is not included with BeagleBone AI.

More info: Accessing most of Texas Instruments' EVE developer documentation requires a non-disclosure agreement. In addition, the AM574x Technical Reference Manual is missing its chapter on the EVE, but you can find a copy of it in other places including Chapter 8 of the TDA2Px Technical Reference Manual.

Cortex-M4 processors

The two "image processor units" (IPUs) each have two ARM Cortex-M4 r0p1 cores that run at up to 212.8 MHz. Interestingly, these cores support performing a multiply-accumulate in a single cycle.

Purpose: These are general-purpose microcontroller cores that you can use for any near-real-time applications. Their name arises from their intended use in real-time image processing pipelines on Sitara AM57x SoCs, and TI supports installing and running their real-time OS, TI-RTOS, on these IPU cores. Some application notes I've found suggest these are included to control separate coprocessors for image signal processing and display systems as you might find in automobile backup cameras, and the TI Deep Learning (TIDL) library uses these cores to control the EVEs.

Usage: Because these are just standard Cortex-M processors at heart, you should be able to use the GNU Arm Embedded Toolchain to build applications for the IPU cores. Someone has demonstrated that programming the Cortex-M4 using Rust is possible if difficult due to the vague documentation around these cores' integration on the AM5749 SoC.

PRUs

BeagleBone AI includes two dual-core programmable real-time units (PRUs), twice as many as earlier BeagleBones.

Purpose: These realtime processors are somewhere between microcontrollers and FPGAs in that they are programmed in a RISC assembly language but have deterministic, single-cycle execution of all operations. This makes them ideal for implementing timing-sensitive protocols such as Ethernet; in fact, TI provides the code to turn a PRU into a 100 Mbit Ethernet NIC to demonstrate how this can be done.

Usage: These devices are programmed in the same way as I described on my BeagleBone PRU page. BeagleBone AI ships with the PRU Code Generation Tools which includes the clpru C compiler.

Linux interfaces

The BeagleBone AI exposes many of its coprocessors through the same remote processor interface as the PRUs:

debian@beaglebone:~$ ls -l /sys/class/remoteproc
total 0
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc0 -> ../../devices/platform/44000000.ocp/58820000.ipu/remoteproc/remoteproc0
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc1 -> ../../devices/platform/44000000.ocp/55020000.ipu/remoteproc/remoteproc1
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc2 -> ../../devices/platform/44000000.ocp/40800000.dsp/remoteproc/remoteproc2
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc3 -> ../../devices/platform/44000000.ocp/41000000.dsp/remoteproc/remoteproc3
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc4 -> ../../devices/platform/44000000.ocp/4b226004.pruss_soc_bus/4b200000.pruss/4b234000.pru/remoteproc/remoteproc4
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc5 -> ../../devices/platform/44000000.ocp/4b226004.pruss_soc_bus/4b200000.pruss/4b238000.pru/remoteproc/remoteproc5
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc6 -> ../../devices/platform/44000000.ocp/4b2a6004.pruss_soc_bus/4b280000.pruss/4b2b4000.pru/remoteproc/remoteproc6
lrwxrwxrwx 1 root root 0 Sep 11 23:04 remoteproc7 -> ../../devices/platform/44000000.ocp/4b2a6004.pruss_soc_bus/4b280000.pruss/4b2b8000.pru/remoteproc/remoteproc7

This tells us that

  • remoteproc0 and remoteproc1 are the ARM Cortex-M4 "image processing units" (IPUs)
  • remoteproc2 and remoteproc3 are the TI TMS320C66x DSPs
  • remoteproc4 through remoteproc7 are our good old friends, the programmable real-time units (PRUs).

You may notice that the EVEs are not represented here. It looks like the EVEs do not have a userspace interface, and peeling apart the demo TIDL applications that use the EVEs (see below) reveals that EVEs are accessed through /dev/mem. The only way to know how to program the EVEs directly is to know their memory space and to perform memory-mapped I/O directly into EVE registers and buffers. Details on how to do this are likely locked away under NDA.

The remoteproc interface also allows you to inspect what the Cortex-M4 and C66x DSPs are doing. For example to get an idea of what code was running on the second Cortex-M4 core (remoteproc1):

$ sudo tail /sys/kernel/debug/remoteproc/remoteproc0/trace0
[0][      0.014] [t=0x01287e67] xdc.runtime.Main: EVE2 attached
[0][      0.017] [t=0x013bf9bb] xdc.runtime.Main: EVE3 attached
[0][      0.020] [t=0x014f8ea5] xdc.runtime.Main: EVE4 attached
[0][      0.020] [t=0x0150b475] xdc.runtime.Main: Opening MsgQ on EVEs...
[0][      1.020] [t=0x1aae9599] xdc.runtime.Main: OCL:EVE1:MsgQ opened
[0][      2.020] [t=0x340d5f4b] xdc.runtime.Main: OCL:EVE2:MsgQ opened
[0][      3.020] [t=0x4d6c1f01] xdc.runtime.Main: OCL:EVE3:MsgQ opened
[0][      4.020] [t=0x66caf409] xdc.runtime.Main: OCL:EVE4:MsgQ opened
[0][      4.020] [t=0x66cc11d7] xdc.runtime.Main: Pre-allocating msgs to EVEs...
[0][      4.021] [t=0x66d1cfd7] xdc.runtime.Main: Done OpenCL runtime initialization. Waiting for messages...

We see that it was last executing code to control the four EVE vector coprocessors. The TIDL library had loaded this code as part of its execution.

TIDL

TIDL is the C++ library that provides a simple interface atop the C66x and EVE coprocessors to do inference. There are demo applications in two places:

  1. /var/lib/cloud9/BeagleBone/AI/tidl contains a demo app that acts as an mjpg-streamer plugin to classify a video stream coming from a webcam. It was developed specifically for the BeagleBone AI based on TI demo apps.

  2. /usr/share/ti/examples/tidl contains the examples that ship with the TIDL API source package.

The official examples from the TIDL API repo are much more expansive and include both C++ and Python versions of code, but they haven't been Cloud9-ified and must be accessed via command line.

BeagleBone Demo App

The BeagleBone AI comes with a single demo application that uses both the EVEs and C66x DSPs to demonstrate image classification. You can run it in Cloud9 as documented in the TIDL on BeagleBone AI blog post, but I had an easier time running it directly from the command line. To do so,

$ cd /var/lib/cloud9/BeagleBone/AI/tidl
$ make

This should compile. Then plug your favorite webcam into the USB port of your BeagleBone AI. Confirmed that Linux recognizes the webcam:

$ journalctl | grep usb | tail
Sep 12 14:54:06 beaglebone kernel: usb 1-1: SerialNumber: BCA5A510
Sep 12 14:54:06 beaglebone kernel: input: UVC Camera (046d:0825) as /devices/platform/44000000.ocp/488c0000.omap_dwc3_2/488d0000.usb/xhci-hcd.1.auto/usb1/1-1/1-1:1.0/input/input2
Sep 12 14:54:06 beaglebone kernel: usbcore: registered new interface driver uvcvideo

Then run the demo app:

$ make run
/var/lib/cloud9/common/Makefile:27: MODEL=BeagleBoard.org_BeagleBone_AI,TARGET=,COMMON=/var/lib/cloud9/common
Makefile:10: warning: overriding recipe for target 'clean'
/var/lib/cloud9/common/Makefile:224: warning: ignoring old recipe for target 'clean'
...
About to start ProcessFrame loop!!
http://localhost:8080/?action=stream

You can then navigate to http://beaglebone.local:8090/?action=stream to see the video stream. If you put something in front of your webcam, you should see a classification appear in green text in the upper-left corner of the video stream:

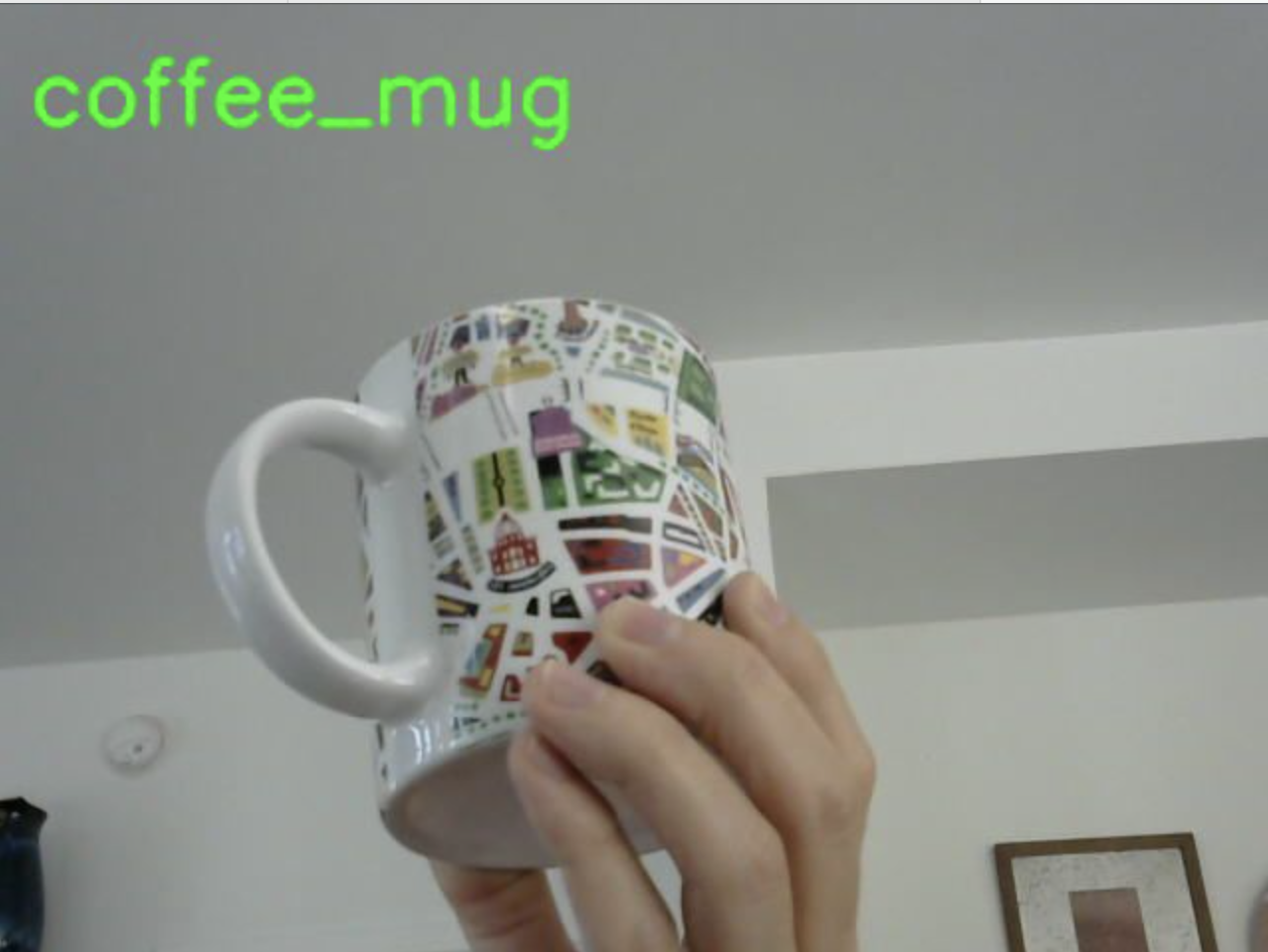

Screenshot from TIDL demo app classifier

You should also see the classification appear in the terminal:

(487)=cellular_telephone
(487)=cellular_telephone
(487)=cellular_telephone
(504)=coffee_mug
(504)=coffee_mug

You may notice that the classifier thinks a lot of things are cellular telephones; this is because the demo app is only set up to classify ten different types of items: baseballs, sunglasses, coffee mugs, beer glasses, water bottles, bagels, digital watches, cell phones, ping pong balls, and pill bottles. Since these are the only things this demo app is looking for, it will never label objects as anything else.

Sadly, cats are not among the list, but you can edit the classification.tidl.cpp source and pick whatever labels you'd like from the imagenet list in /usr/share/ti/examples/tidl/classification/imagenet.txt. Or you can just load all the labels and let the classifier go nuts; change the definition of selected_size and replace the list of labels with a loop that just copies the loaded labels:

populate_labels("/usr/share/ti/examples/tidl/classification/imagenet.txt");

selected_items_size = size; // 10;
selected_items = (int *)malloc(selected_items_size*sizeof(int));
if (!selected_items) {
    std::cout << "selected_items malloc failed" << std::endl;
    return false;
}
// instead of copying individual labels, copy all of them
for (int i = 0; i < selected_items_size; i++)
    selected_items[i] = i;

std::cout << "loading configuration" << std::endl;
configuration.numFrames = 0;

After this change, a bunch of incorrect labels are spit out by the application, but it is able to correctly classify George as a tabby cat:

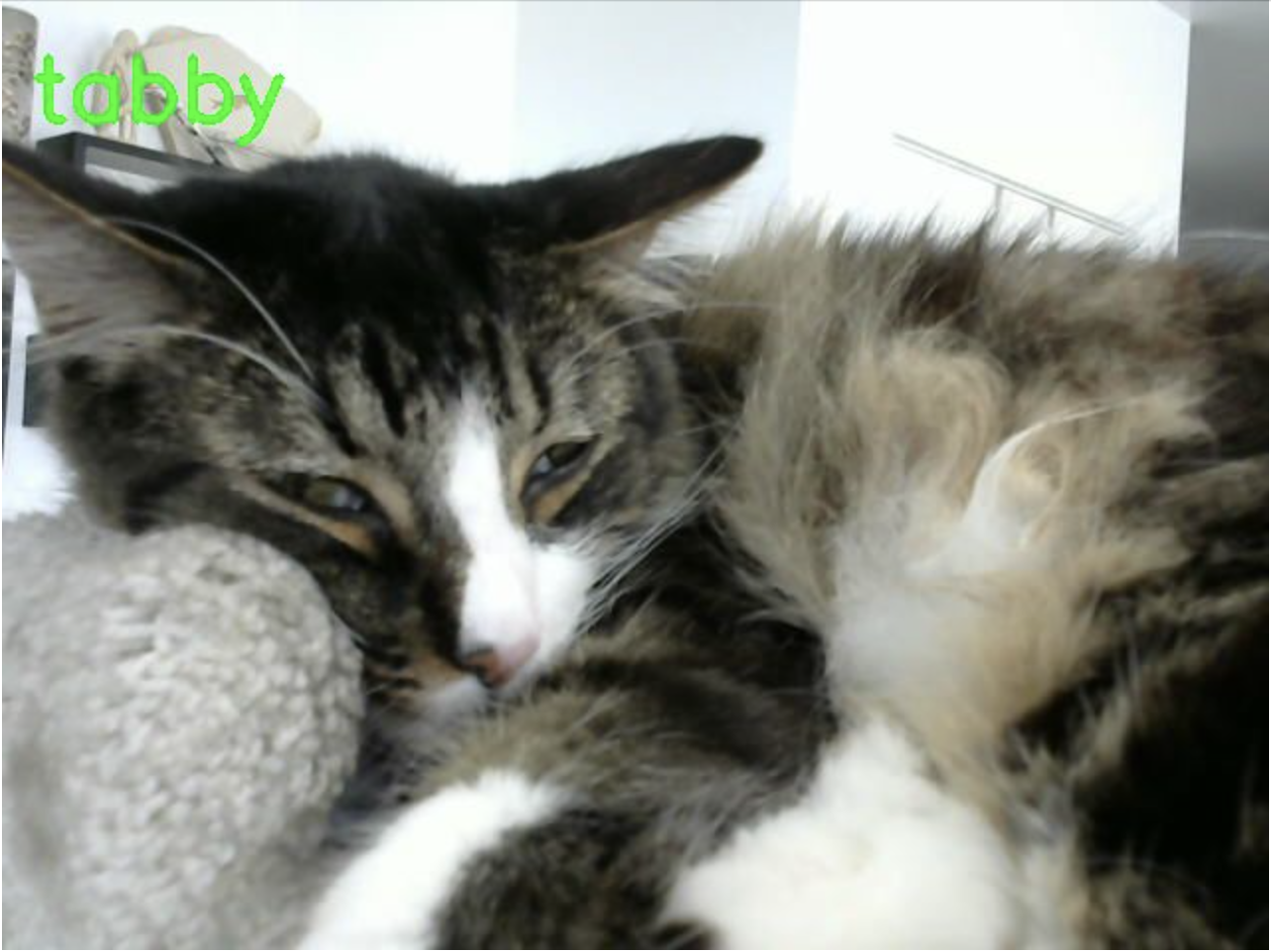

Screenshot from TIDL demo app classifying George the cat

TIDL for Python

TIDL also includes a Python3 interface which is included with the BeagleBone AI version of the TIDL API. However it's not obvious how to use it since naively trying to run the Python example apps fails:

$ cd /usr/share/ti/examples/tidl/pybind
$ ./one_eo_per_frame.py
Traceback (most recent call last):
  File "./one_eo_per_frame.py", line 35, in <module>
    from tidl import DeviceId, DeviceType, Configuration, Executor, TidlError
ModuleNotFoundError: No module named 'tidl'

Unlike most Python packages, the TIDL Python interface is a .so, not a directory full of .py files so I had a hard time figuring out where to look for it. It turns out the trick is to add the following to your PYTHONPATH:

$ PYTHONPATH=/usr/share/ti/tidl/tidl_api ./imagenet.py
Input: ../test/testvecs/input/objects/cat-pet-animal-domestic-104827.jpeg
TIOCL FATAL: Failed to open file /dev/mem

This time TIDL was found, but we need to run as root due to TIDL's need to directly manipulate /dev/mem. So,

$ sudo PYTHONPATH=/usr/share/ti/tidl/tidl_api ./imagenet.py
[sudo] password for debian:
Input: ../test/testvecs/input/objects/cat-pet-animal-domestic-104827.jpeg
1: Egyptian_cat,   prob = 34.12%
2: tabby,   prob = 34.12%
3: Angora,   prob =  9.41%
4: tiger_cat,   prob =  7.84%

Since TIDL Python apps have to run as root, you may run into unexpected errors even if you export PYTHONPATH=/usr/share/ti/tidl/tidl_api in your .bashrc.

Issues

Random segmentation faults

I found that TIDL requires you to initialize Executor objects before allocating any memory buffers for TIDL devices, but Python will garbage collect these Executors if they fall out of scope. This will result in subsequent TIDL calls segfaulting.

The trick I used to keep Executor objects alive is to keep them in a global dictionary. Even though they may not need to be referenced after they are initialized in Python, stuffing them in global variables keeps them from being garbage collected while not requiring they be passed between functions. An alternative may be to create a more Pythonic API on top of the official pybind TIDL library.

Assorted Howtos

Many how-to's are covered on my BeagleBone Black howto section.

Determine CPU temperature

$ cat /sys/devices/virtual/thermal/thermal_zone0/temp
37000

This is 37 celsius.

Give all DRAM to Linux

If you free -m on BeagleBone AI,

glock@greystone:~$ free -m
              total        used        free      shared  buff/cache   available
Mem:            612         120         365           4         127         474
Swap:             0           0           0

You'll see that there's only 612 MiB of RAM available to Linux, not the full 1 GiB advertised. This is because BeagleBone's OS is configured to reserve a lot of memory C66x DSPs and EVE DLAs. If you don't intend to use the DSPs or DLAs though, you can recover this memory.

First check your kernel version:

$ uname -r
4.14.108-ti-r143

Then edit the device tree that's loaded on boot, making sure to edit the correct version that matches our kernel (4.14 in our case):

$ cd /opt/source/dtb-4.14-ti
$ git pull
$ vi src/arm/am5729-beagleboneai.dts

Scroll down a bit and at around line 23 you'll see a block that begins with reserved-memory {:

/*
    reserved-memory {
        #address-cells = <2>;
        #size-cells = <2>;
...
        cmem_block_mem_0: cmem_block_mem@a0000000 {
            reg = <0x0 0xa0000000 0x0 0x18000000>;
            no-map;
            status = "okay";
        };
    };
*/

Comment this out using C-style comments (/* ... */). Also comment out the following cmem { block because it references cmem memory blocks defined in the reserved-memory block we just disabled above:

/*
    cmem {
        compatible = "ti,cmem";
        #address-cells = <1>;

...

        cmem_block_1: cmem_block@1 {
            reg = <1>;
            memory-region = <&cmem_block_mem_1_ocmc3>;
        };
    };
*/

Finally, comment out the bits that reference these disabled memory regions. There are two for the IPUs (the Cortex-M4s which control the EVEs) and two for the DSPs (C66x):

/*
&ipu1 {
        status = "okay";
        memory-region = <&ipu1_memory_region>;
};

&ipu2 {
        status = "okay";
        memory-region = <&ipu2_memory_region>;
};

&dsp1 {
        status = "okay";
        memory-region = <&dsp1_memory_region>;
};

&dsp2 {
        status = "okay";
        memory-region = <&dsp2_memory_region>;
};
*/

Then back in /opt/source/dtb-4.14-ti (or whatever directory matches your kernel), run make as the debian user:

$ make
...
  DTC     src/arm/am5729-beagleboneai.dtb

Then install the rebuilt device tree:

$ sudo make install
...
'src/arm/am5729-beagleboneai.dtb' -> '/boot/dtbs/4.14.108-ti-r143/am5729-beagleboneai.dtb'

After this, cross your fingers and sudo reboot. Once the system comes back up, you should see almost the full 1 GiB now:

$ free -m
              total        used        free      shared  buff/cache   available
Mem:            993          51         865           5          76         913
Swap:             0           0           0
